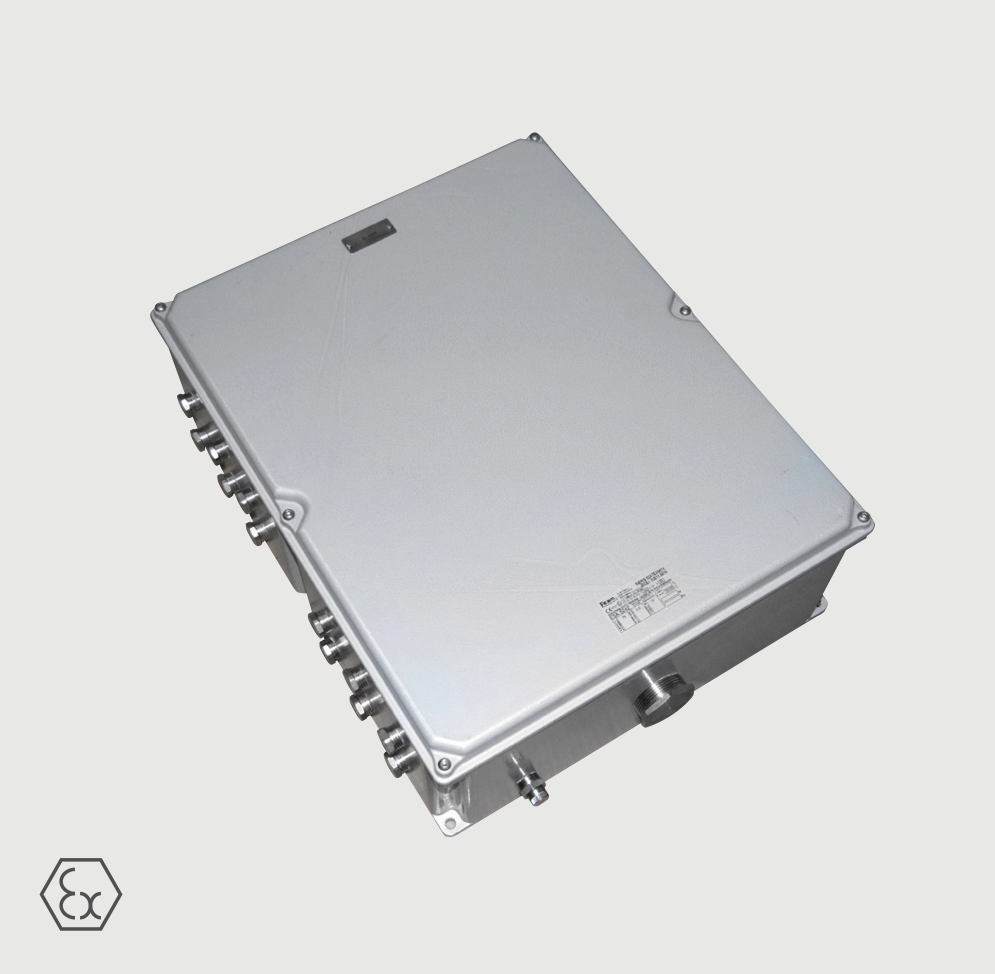

BARTEC ESA Junction & Terminal Boxes

The BARTEC ESA Junction & Terminal Box range provides a robust solution for electrical connections, termination and distribution in hazardous areas. Designed for Zone 1 and Zone 2 gas environments and Zone 21 and Zone 22 dust environments, the ESA range is suitable for demanding industrial installations.

Manufactured from marine-grade copper-free aluminium with stainless steel screws and an aluminium internal plate, the ESA range combines durable construction with IP66 ingress protection. Ex e IIB and IIC configurations are available, providing flexibility for a range of hazardous area electrical applications.

The ESA range is available in multiple enclosure sizes and can accommodate a variety of terminal configurations and cable entries. Optional features include external epoxy coating, internal anti-condensation coating and drain and breather valves, allowing the enclosure to be configured for challenging operating environments.

Key features

• Ex e aluminium junction and terminal boxes
• IIB and IIC configurations available
• Suitable for Zone 1 and Zone 2 gas hazardous areas
• Suitable for Zone 21 and Zone 22 dust hazardous areas
• Marine-grade copper-free aluminium body and cover
• IP66 ingress protection
• Stainless steel screws
• Aluminium internal plate
• Ambient temperature range of -60°C to +60°C
• Multiple enclosure sizes available
• Flexible terminal and cable entry configurations
• External epoxy coating available on request
• Internal anti-condensation coating available on request
• Drain and breather valves available
• ATEX and IECEx certified
