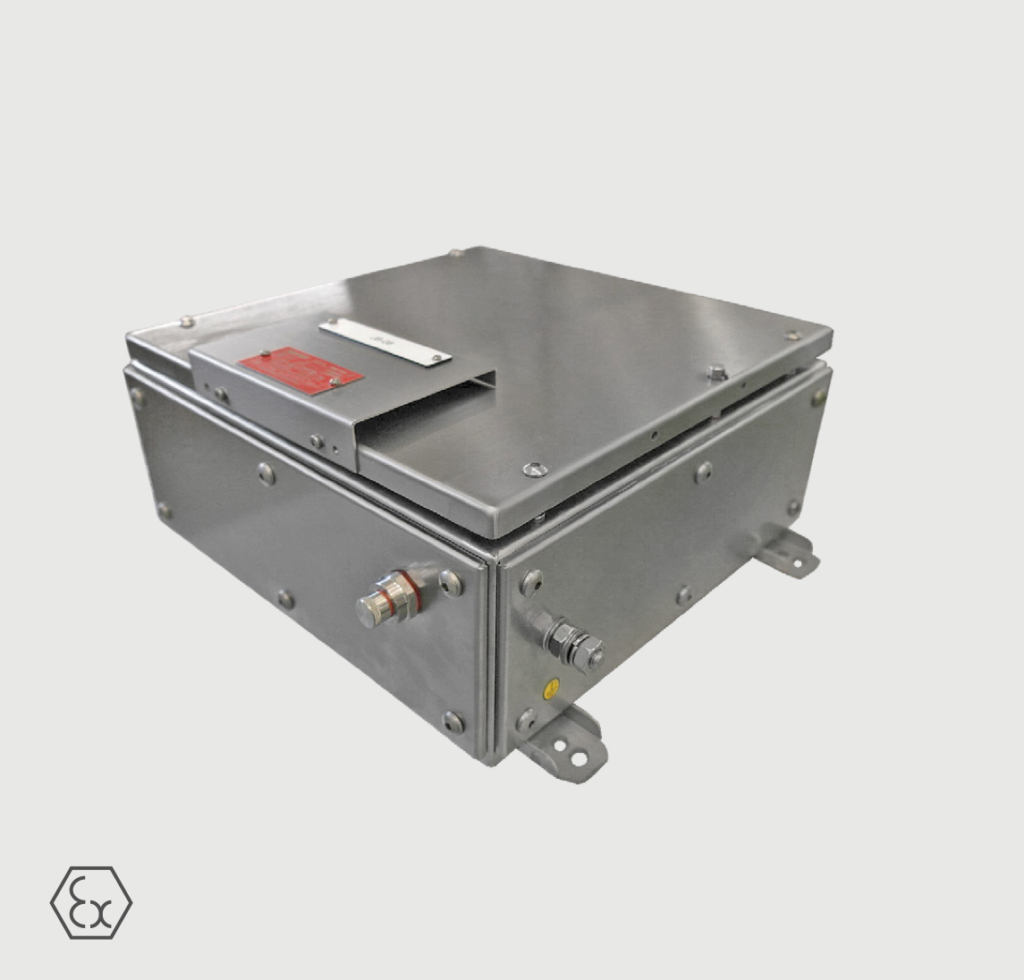

BARTEC ESX Junction Boxes

The BARTEC ESX Junction Box range provides a robust and versatile solution for electrical connections and termination in hazardous areas. Designed for Zone 1 and Zone 2 gas environments and Zone 21 and Zone 22 dust environments, the ESX range is suitable for demanding industrial installations where durability and corrosion resistance are required.

The body, cover, screws and internal plate are manufactured from AISI 316L stainless steel, providing excellent resistance to corrosion and harsh environmental conditions. With IP66 ingress protection and Ex e IIB or IIC configurations available, the ESX range is well suited to hazardous area electrical installations across oil and gas, marine, offshore and other heavy industrial applications.

The ESX range is available in a wide selection of enclosure sizes and configurations, with options including removable side flanges, hinged covers, key or padlock closures, internal document holders, drain and breather valves and internal anti-condensation coating.

Key features

• Ex e hazardous area junction box
• IIB and IIC configurations available
• Suitable for Zone 1 and Zone 2 gas hazardous areas
• Suitable for Zone 21 and Zone 22 dust hazardous areas
• AISI 316L stainless steel body and cover
• AISI 316L stainless steel screws and internal plate
• IP66 ingress protection
• Ambient temperature range of -60°C to +60°C
• Multiple enclosure sizes available
• Adjustable stainless steel fixing lugs
• Removable side flanges available
• Hinged cover options available
• Key and padlock closure options available
• Internal anti-condensation coating available
• Drain and breather valves available
• ATEX and IECEx certified
