BARTEC iWAPXN3 – Zone 2 / Class I Div 2 Wireless Enclosure System

BARTEC iWAPXN3 Hazardous Area Wireless Enclosure System

The BARTEC iWAPXN3 is a lightweight Zone 2 and Zone 22 wireless enclosure system designed for the safe deployment of wireless technologies in hazardous and potentially explosive environments. Certified for ATEX and IECEx Zone 2 and 22, as well as Class I and II Division 2 and Zone 2 applications in North America, the iWAPXN3 provides a flexible platform for industrial wireless communications in hazardous areas.

Designed specifically for wireless applications, the iWAPXN3 allows operators to install wireless equipment from virtually any vendor, including industrial Wi-Fi access points, LTE/4G/5G routers, UHF RFID readers and IoT gateways supporting technologies such as LoRa/LoRaWAN, WirelessHART and ISA100.

BARTEC’s proprietary iSOLATE technology provides intrinsically safe RF outputs through standard N-type connectors, allowing standard antennas to be used in the hazardous area without requiring specialised RF equipment.

Available in four standard enclosure sizes, with custom sizes available on request, the iWAPXN3 combines a compact, lightweight design with flexible wireless integration. This makes it suitable for wireless connectivity applications across oil and gas, LNG, mining, petrochemical, chemical processing and other hazardous industrial environments.

Key Benefits

  • Zone 2 and Zone 22 certified wireless enclosure system
  • Class I and II Division 2 hazardous area wireless solution
  • ATEX and IECEx certified for Zone 2 and 22 applications
  • MET certified for Class I and II Division 2 and Zone 2 applications
  • Supports wireless technology from virtually any vendor
  • Compatible with Wi-Fi, UHF RFID, LTE, IoT, LoRa/LoRaWAN, WirelessHART and ISA100
  • Proprietary iSOLATE RF isolation technology
  • Intrinsically safe RF outputs with standard N-type connectors
  • Allows standard antennas to be used in hazardous areas
  • Lightweight design from approximately 7.8 kg
  • Easy to install and maintain
  • Four standard enclosure sizes available
  • Custom enclosure sizes available on request

Technical Specifications

Specification Details
Hazardous Area Certification ATEX & IECEx Zone 2 and 22; MET Class I and II Division 2 and Zone 2
Wireless Technologies Wi-Fi, UHF RFID, LTE, IoT gateways, LoRa/LoRaWAN, WirelessHART, ISA100 and other compatible technologies
RF Outputs Intrinsically safe RF outputs using BARTEC iSOLATE technology with standard N-type connectors
Material Marine-grade copper-free aluminium alloy with epoxy powder coating
Weight Approx. 7.8–13.7 kg depending on model, excluding wireless access point
Dimensions From 293 × 388 × 220 mm to 503 × 388 × 220 mm depending on model
Enclosure Sizes Four standard sizes; custom sizes available on request

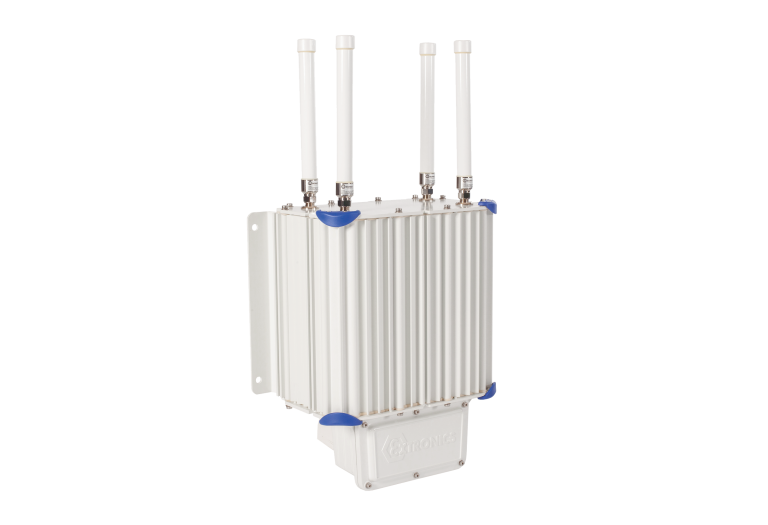

iWAP XN3 - Zone 2/Div 2 Wireless Enclosure System
