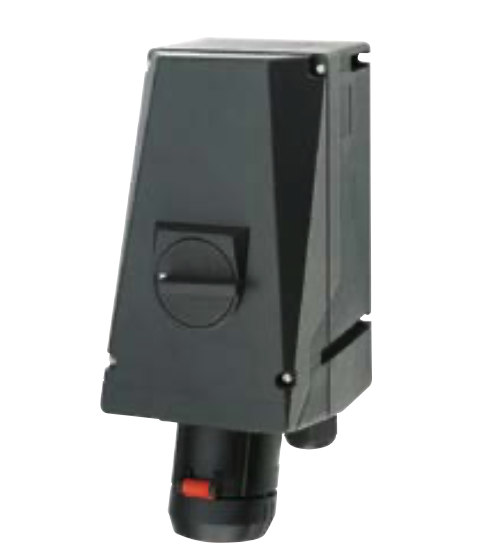

CEAG 125A 5-Pole Ex Wall Socket

The CEAG 125A 5-pole wall socket provides a robust and reliable power connection for hazardous area applications. Designed for use as part of the CEAG Ex plug and receptacle system, it is suitable for demanding industrial environments where safe electrical connections and resistance to harsh operating conditions are essential.

Rated at 125A and suitable for voltages up to 690V, the wall socket features a durable glass-fibre reinforced polyester enclosure with IP66 ingress protection. The range is certified to IECEx and ATEX requirements and is designed in accordance with IEC 60309-1/2.

The 5-pole configuration supports three-phase connections with neutral and protective earth (3P + N + PE), with versions available with an auxiliary contact. The catalogue’s wiring diagram on page 17 shows both configurations.

Designed for hazardous-area power distribution across industries such as oil and gas, LNG, mining, marine and heavy industry, the CEAG 125A wall socket provides a high-capacity connection solution for equipment operating in challenging environments.

Key features

• 125A rated current
• 5-pole configuration – 3P + N + PE
• Rated voltage up to 690V
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Glass-fibre reinforced polyester enclosure
• Operating temperature: -20°C to +40°C, with extended temperature range available on request
• Multiple cable-entry configurations available
• Versions available with auxiliary contact
