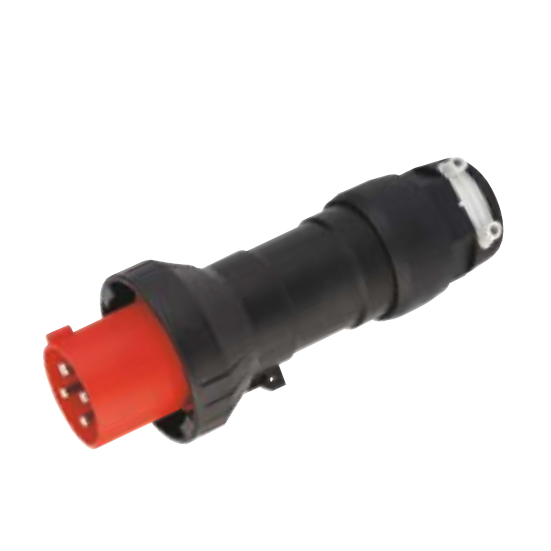

CEAG 125A 5-Pole Ex Plug

The CEAG 125A 5-pole Ex plug provides a robust and reliable power connection for hazardous area applications. Designed for use as part of the CEAG Ex plug and receptacle system, it is suitable for demanding industrial environments where secure electrical connections and resistance to harsh operating conditions are essential.

Rated at 125A and suitable for voltages up to 690V, the plug features a durable polyamide enclosure with IP66 ingress protection. The range is IECEx and ATEX certified and designed in accordance with IEC 60309-1/2.

The 5-pole configuration provides 3P + N + PE connectivity for three-phase applications. The CEAG system is designed to provide secure and reliable electrical connections, including in environments subject to vibration and aggressive atmospheric conditions.

Key features

• 125A rated current
• 5-pole configuration – 3P + N + PE
• Rated voltage up to 690V
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Durable polyamide enclosure
• Cable entry diameter: 31–55 mm
• Connecting terminals: 4–35 mm², or up to 50 mm² with pin cable lug
• Suitable for frequencies up to 400 Hz
