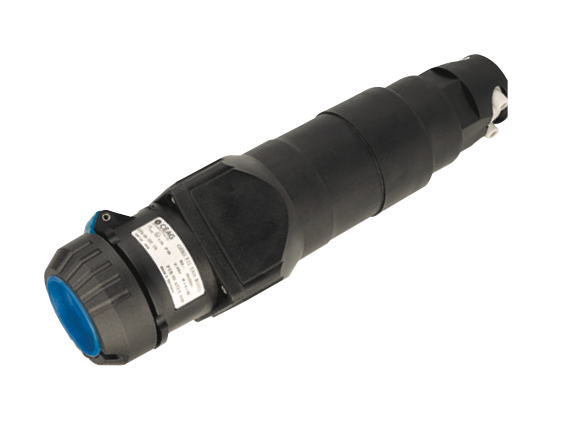

CEAG 16A Ex Coupler – 3 & 4 Pole

The CEAG 16A Ex coupler provides a robust and reliable power connection for hazardous area applications. Available in 3-pole and 4-pole configurations, it is designed for demanding industrial environments where secure electrical connections and resistance to harsh operating conditions are essential.

Rated at 16A, the coupler supports voltages up to 415V for the 3-pole version and up to 690V for the 4-pole version. It features a durable polyamide enclosure with IP66 ingress protection and is IECEx and ATEX certified.

Designed in accordance with IEC 60309-1/2, the CEAG 16A coupler features low insertion force and reliable electrical contact, providing a secure connection for hazardous area electrical equipment.

Key features

• 16A rated current
• Available in 3-pole and 4-pole configurations
• Rated up to 415V AC (3-pole) and 690V AC (4-pole)
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Durable polyamide enclosure
• Cable entry: 8–19 mm (3-pole) / 8–21 mm (4-pole)
• Connecting terminals: 1.5–4.0 mm²
• Frequency up to 400 Hz
• Designed for hazardous area power connections
