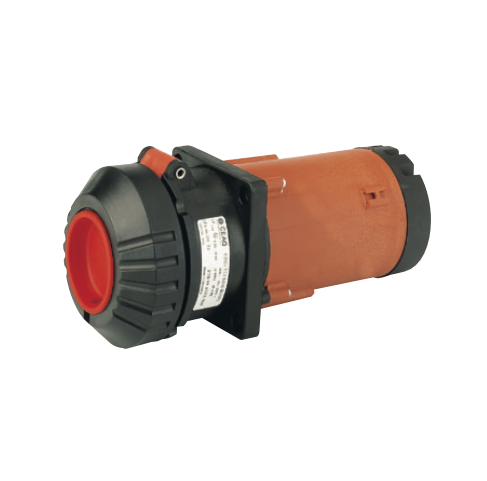

CEAG 32A Ex Flange Socket – 4 & 5 Pole

The CEAG 32A Ex flange socket provides a robust and reliable power connection for hazardous area applications. Available in 4-pole and 5-pole configurations, it is designed for integration into panels, enclosures and equipment requiring secure electrical connections in demanding industrial environments.

Rated at 32A and suitable for voltages up to 690V AC, the flange socket features a durable polyamide enclosure with IP66 ingress protection. The range is IECEx and ATEX certified and designed in accordance with IEC 60309-1/2.

The 4-pole configuration provides 3P + PE, while the 5-pole configuration provides 3P + N + PE, providing options for different three-phase power requirements.

Key features

• 32A rated current
• Available in 4-pole (3P + PE) and 5-pole (3P + N + PE) configurations
• Rated voltage up to 690V AC
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Durable polyamide enclosure
• Connecting terminals: 4–10 mm²
• Frequency up to 400 Hz
• Designed for fixed flange-mounted installation
• Suitable for hazardous area electrical connection systems

The catalogue lists the 4-pole flange socket across 200–250V, 380–415V, 480–500V and 600–690V variants, while the listed 5-pole flange socket is for 200–250V / 380–415V applications.
