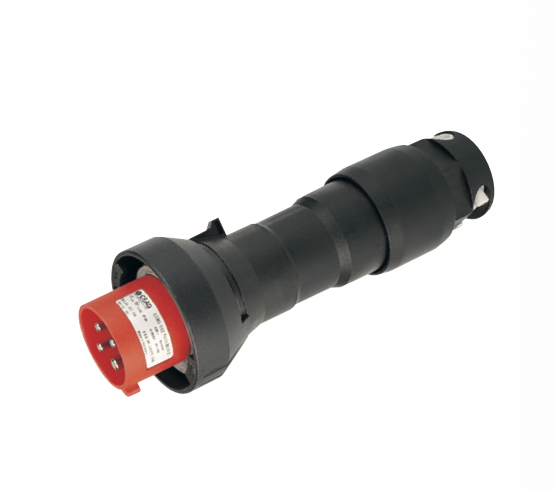

CEAG 32A Ex Plug – 4 & 5 Pole

The CEAG 32A Ex plug provides a robust and reliable power connection for hazardous area applications. Available in 4-pole and 5-pole configurations, it is designed for demanding industrial environments where secure electrical connections and resistance to harsh operating conditions are essential.

Rated at 32A and suitable for voltages up to 690V AC, the plug features a durable polyamide enclosure with IP66 ingress protection. The range is IECEx and ATEX certified and designed in accordance with IEC 60309-1/2.

The 4-pole configuration provides 3P + PE, while the 5-pole configuration provides 3P + N + PE, providing options for different three-phase power requirements. With a cable entry range of 12–28 mm, the plug is designed to provide a secure connection for hazardous area electrical equipment.

Key features

• 32A rated current
• Available in 4-pole (3P + PE) and 5-pole (3P + N + PE) configurations
• Rated voltage up to 690V AC
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Durable polyamide enclosure
• Cable entry diameter: 12–28 mm
• Connecting terminals: 2.5–6 mm²
• Frequency up to 400 Hz
• Designed for hazardous area power connections
