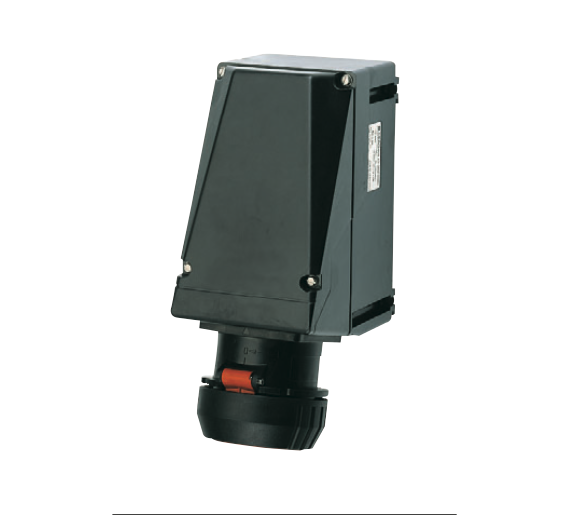

CEAG 32A Ex Wall Socket – 4 & 5 Pole

The CEAG 32A Ex wall socket provides a robust and reliable power connection for hazardous area applications. Available in 4-pole and 5-pole configurations, it is designed for demanding industrial environments where secure electrical connections and resistance to harsh operating conditions are essential.

Rated at 32A and suitable for voltages up to 690V AC, the wall socket features a durable glass-fibre reinforced polyester enclosure with IP66 ingress protection. The range is IECEx and ATEX certified and designed in accordance with IEC 60309-1/2.

The 4-pole configuration provides 3P + PE, while the 5-pole configuration provides 3P + N + PE, providing options for different three-phase power requirements. The catalogue also lists versions with an auxiliary contact for selected configurations.

Key features

• 32A rated current
• Available in 4-pole (3P + PE) and 5-pole (3P + N + PE) configurations
• Rated voltage up to 690V AC
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Glass-fibre reinforced polyester enclosure
• Connecting terminals: 4–10 mm²
• Frequency up to 400 Hz
• Multiple cable-entry configurations available
• Auxiliary-contact versions available for selected configurations
• Ambient temperature options extending as low as -55°C, depending on the specific configuration

The catalogue specifies different permissible ambient temperatures depending on the gas group and component, so I would avoid simply stating “-55°C to +55°C” as a universal rating for every 32A variant.
