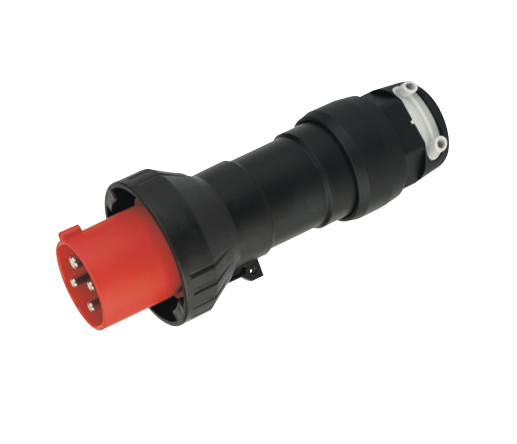

CEAG 63A Ex Plug – 4 & 5 Pole

The CEAG 63A Ex plug provides a robust and reliable power connection for hazardous area applications. Available in 4-pole and 5-pole configurations, it is designed for demanding industrial environments where secure electrical connections and resistance to harsh operating conditions are essential.

Rated at 63A, the plug supports voltages up to 690V AC for the 4-pole version and 500V AC for the 5-pole version. It features a durable polyamide enclosure with IP66 ingress protection and is IECEx and ATEX certified. The range is designed in accordance with IEC 60309-1/2.

The 4-pole configuration provides 3P + PE, while the 5-pole configuration provides 3P + N + PE, providing options for different three-phase power requirements. The 63A range is designed for operation across an extended ambient temperature range of -55°C to +55°C, subject to the specific configuration and installation requirements.

Key features

• 63A rated current
• Available in 4-pole (3P + PE) and 5-pole (3P + N + PE) configurations
• Rated up to 690V AC (4-pole) / 500V AC (5-pole)
• IP66 ingress protection
• IECEx and ATEX certified
• Designed in accordance with IEC 60309-1/2
• AC-3 switching capability
• Durable polyamide enclosure
• Cable entry diameter: 19–34 mm
• Connecting terminals: 4–16 mm², or up to 25 mm² with pin cable lug
• Frequency up to 400 Hz
• Extended operating temperature range of -55°C to +55°C
